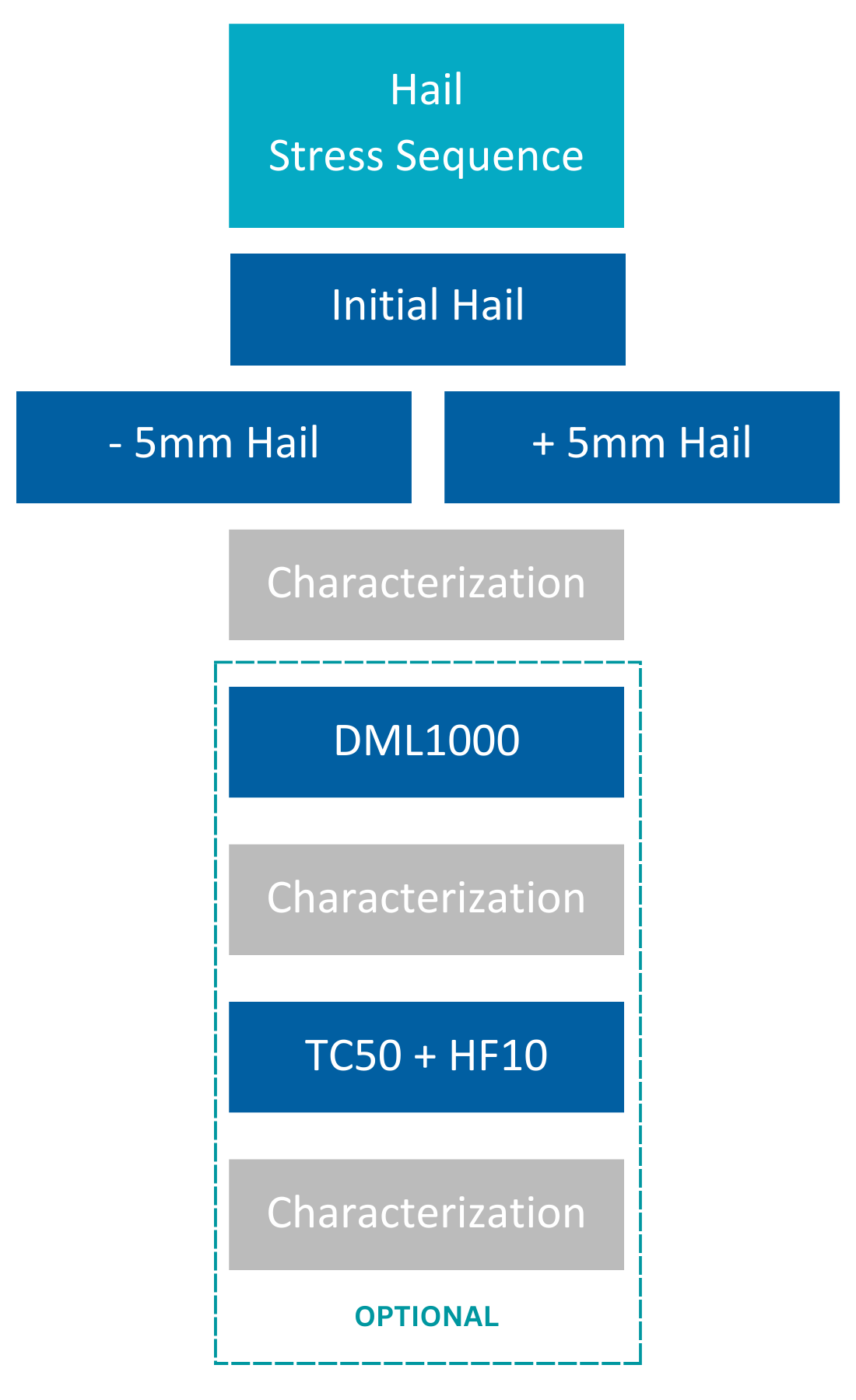

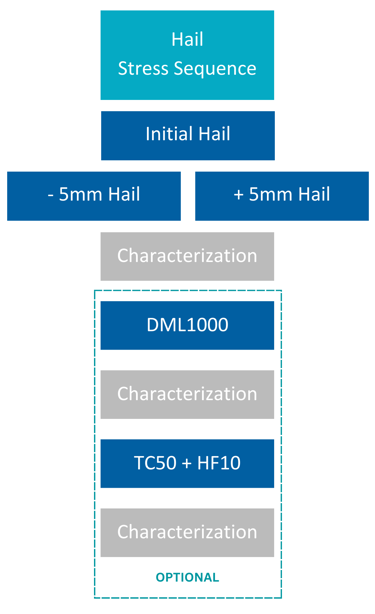

Hail Stress Sequence

As the global climate changes and PV deployment increases to a variety of locations around the world, PV modules mounted in the field may be exposed to severe hail impacts beyond what is covered by the IEC 61215-2:2021 baseline hail test. These hail impacts can result in broken glass and/or cracked cells, and those cracked cells can eventually lead to power loss for hail damaged modules. Kiwa PVEL’s HSS test is focused on determining a module’s susceptibility to these hail impact failure modes.

Why hail stress sequence testing matters

The increase in PV sites being deployed to extreme hail prone regions is prompting concern for many in the solar industry. Aside from the hail risk, some of these locations are ideal for large utility-scale solar sites due to the excellent solar resource, available land and economies of scale. Both developers and investors are enticed by these benefits, but hail mitigation methods must be implemented to ensure successful long-term operations.

These mitigation strategies include selecting modules that have higher hail resistance and implementing weather monitoring and tracker stowing practices. They no longer include relying on big insurance payments if the site is severely impacted by hail. In the current insurance landscape for hail claims, insurers are requiring large deductibles, are implementing limits that significantly reduce payouts, and/or are adding exclusions to insurance policies such as not covering modules with cell cracks. This has essentially pushed hail damage risk on to the other project stakeholders.

Kiwa PVEL’s field team has performed field EL on over 2 GW of sites with hail damages in the past few years. This testing was initially used to identify modules with underlying cell damage and helped size the insurance payment. But as insurance coverage for hail damages grew more restrictive, mitigating hail damage became increasingly important for site owners. Kiwa PVEL’s HSS test goes well beyond the minimum requirements of IEC 61215 and is providing critical data for site developers and investors in determining which modules should be considered to help lower hail damage risk.

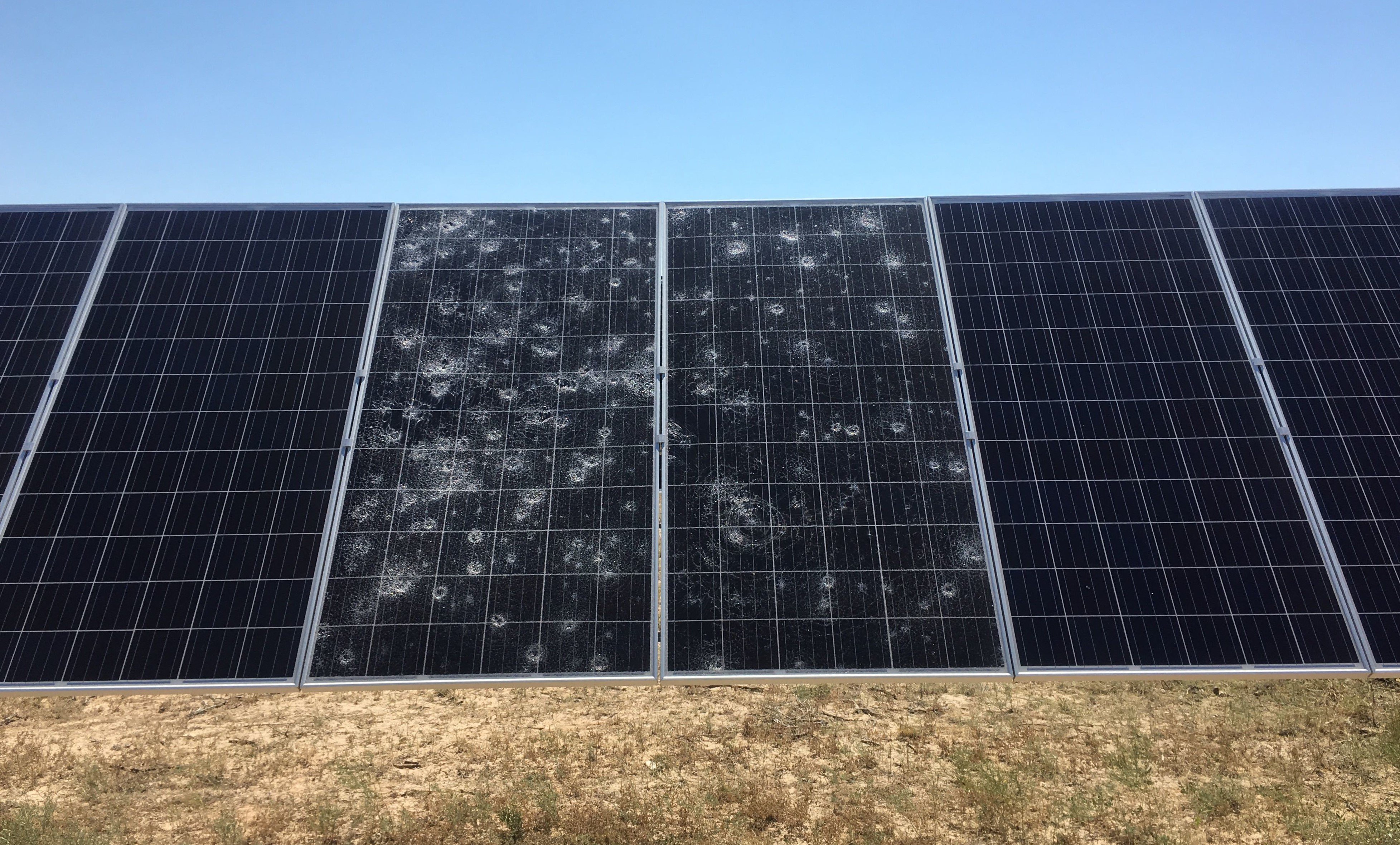

Modules with hail damage. Those without broken glass may have extreme cell cracking, but it is no longer likely that insurance will pay for their replacement.

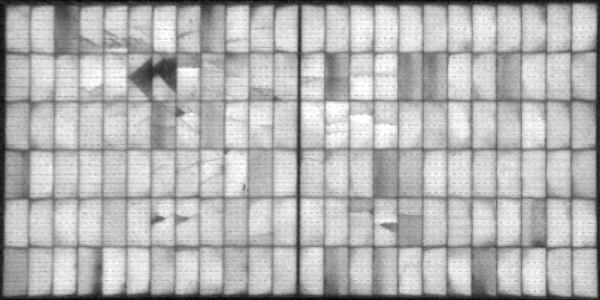

A module with over 25 cracked cells due to hail, which was not eligible for insurance coverage due to changes in insurance policies.

Materials assessed

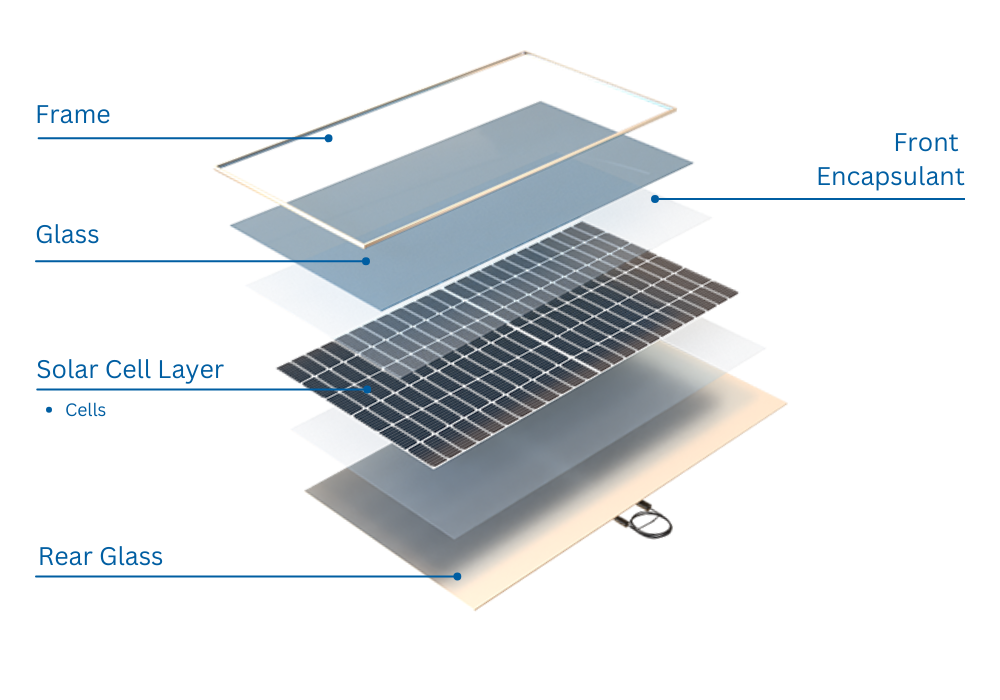

These materials determine how well or poorly a module can withstand hail impacts:

Test procedure

As the global climate changes and PV deployment increases to a variety of locations around the world, PV modules mounted in the field may be exposed to severe hail impacts beyond what is covered by the IEC 61215-2:2021 baseline hail test. These hail impacts can result in broken glass. Kiwa PVEL’s Hail-TTF test is focused on determining a module’s susceptibility to hail caused module breakage.

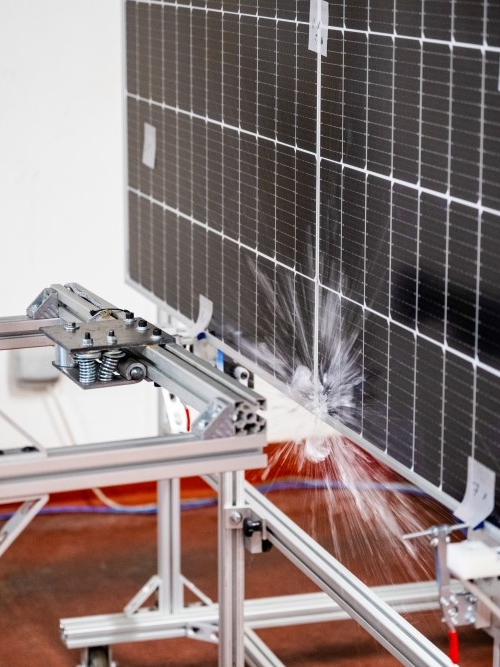

While Hail-TTF hail testing follows some of the guidance of IEC 61215-2:2021 MQT 17, each round of hail testing will use six shots per module per hail size at a 0° angle, aimed at the locations most prone to breakage (i.e. module corners, edges and above the junction box holes). The hail size used is specific to the module design:

 For modules with non-fully tempered glass (such as 2.0 mm glass//glass modules):
• Five samples are subjected to hail testing using 35 mm lab-manufactured ice balls at terminal velocity (27.2 m/s). These hail strikes deliver an impact energy of 7.7 J.
• If none of the five samples subjected to 35 mm hail experience glass breakage, the same five samples will be subjected to hail testing using 40 mm lab-manufactured ice balls at terminal velocity (28.9 m/s), which deliver an impact energy of 12.9 J.
• If none of the five samples subjected to 40 mm hail experience glass breakage, the same five samples will be subjected to hail testing using 45 mm lab-manufactured ice balls at terminal velocity (30.7 m/s), which deliver an impact energy of 20.7 J.
• Testing will stop following the 45 mm hail impacts, regardless of breakage or not.

 For modules with fully tempered glass (such as 3.2 mm glass//backsheet, 2.5 mm glass//2.5 mm glass or 3.2 mm glass//2.0 mm glass hail-hardened modules):
• Five samples are subjected to hail testing using 45 mm lab-manufactured ice balls at terminal velocity (30.7 m/s). These hail strikes deliver an impact energy of 20.7 J.
• If none of the five samples subjected to 45 mm hail experience glass breakage, the same five samples will be subjected to hail testing using 50 mm lab-manufactured ice balls at terminal velocity (32.4 m/s), which deliver an impact energy of 31.5 J.
• If none of the five samples subjected to 50 mm hail experience glass breakage, the same five samples will be subjected to hail testing using 55 mm lab-manufactured ice balls at terminal velocity (33.9 m/s), which deliver an impact energy of 46.1 J.
• Testing will stop following the 55 mm hail impacts, regardless of breakage or not.

The pre-stress, interim and final Hail-TTF characterizations include VI only. No light soaking/CID or other characterizations will occur on the Hail-TTF samples.

Hail-TTF test results will be presented in a separate Hail-TTF Report, with all characterization results, including module breakage data and images.
